Sidewall Belt Curing Press

Brand Name : SFC

Model Number : XLB

Certification : CE,ISO9001:2008,SGS

Place of Origin : China

MOQ : 1set

Price : $5,800.00 - $40,000.00/ Set

Payment Terms : L/C, T/T

Supply Ability : 100sets/month

Delivery Time : 30days

Packaging Details : wooden cases or container

Contact Now

sidewall belt vulcanizing/vulcanizer press machine

This production line is composed of skirt side vulcanizing press, clapboard vulcanizing press, hydraulic stretching roll and auxiliary driven rolls.

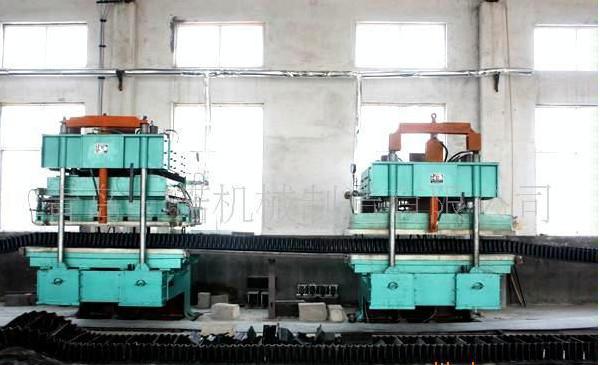

Sidewall Belt Curing Press

Working Principle:
1.The machine is in frame structure with below pressing form (upwards). Under the working hydraulic pressure, the embolism ascends to make hot plate close for getting pressure, while the embolism descends (namely hot plate turning on) by deadweight of hot plate, platform and embolism to drive working fluid to fuel reserve tank to achieve the aim of descending (namely turning on).
2.Made of nodular cast iron, the oil cylinder of machine is improved in compressive strength and wear resistance. Seal ring made of oil-proof rubber is placed in oil cylinder to have sealing effect in working process of this machine.
3.Combined oil pump, power source of the machine, provides working fluid with certain pressure. Working fluid enters into oil cylinder by control valve to make control handle on control valve turn to different places, and then embolism is able to ascend or descend.
4.Adopting tubular electric-heating component to heat up, the machine can reduce air pollution to keep workshop clean without boiler.
5.The machine is beautiful in shape, rational in structure, convenient in control, safe and credible as well.
Main technical specifications:

Model & Specifications	XLB-DQ1200*2100
Total Pressure (Tons)	1.2
Plate Size(mm)	1200210080
Daylight(mm)	300
Piston Stroke(mm)	300
Cylinder NO.(Set)	4
Motor Power(kw)	5

Model & Specifications	XLB-DQ1500*2100
Total Pressure (Tons)	0.25
Plate Size(mm)	1500210080
Daylight(mm)	300
Piston Stroke(mm)	300
Cylinder Diameter(mm)	285
Cylinder NO.(Set)	4
Motor Power(kw)	5.5
