Animal Rubber Mat Vulcanizing Press

Brand Name : SFC

Model Number : XQB

Certification : CE ISO SGS

Place of Origin : China

MOQ : 1set

Price : $5,800.00 - $40,000.00/ Set

Payment Terms : L/C, T/T

Supply Ability : 100sets/month

Delivery Time : 30days

Packaging Details : wooden cases or container

Power(w) : 1.5KW-75kw

Type : Vulcanizer

Product name : Animal Rubber Mat Vulcanizing Press

Working layer : 2-7 layers

Advantage : High Energy Saving/High producing efficiency

Contact Now

animal rubber carpet/cushion/pad vulcanizing press

The rubber press machine applies to sulfurizing various kinds of rubber and plastic model products as well as non-model products.
We can design various kinds of non-standard rubber press machine according to your requirements.

Product Description
1. CE, SGS, ISO9001: 2008 certification.
2. The press has two electrical platens (one working layer)
3. PLC control, high production efficiency
4. Height from floor to underside of top heated platen according to clients requirements design.
5. Daylight when press open according to clients requirements design.
6. Independent control panel.
7. Competitive price
8. Hot plates made of HT200, surface by surface grinding processing, plate face to face parallelism accuracy ± 0.05mm, finish is 1.0μ M.
9. The wires are connected machines, as long as the power supply is connected, the machines can work.

This vulcanizing press mainly consists of host machine, hydraulic system, and electronic control system. Fuel tank alone installed on the on the left of host machine, not affected by the temperature of host machine plate...Workers have convenient operation and capacious visual. Plate temperature is controlled by temperature control table, high precision and good quality of products. The machine parts are all according to ministry of chemical industry standard, using quality materials, with meticulously processed.

Parameters

Model Total Pressure

Daylight

(mm)

Working

Layer

Piston

Stroke(mm)

Main Motor

Power(KW)

Overall Diameter

(LxWxH)(mm)
XLB-350x350x2 0.25 125 2 250 2.2 1200x580x1200
XLB-400x400x2 0.50 125 2 250 2.2 1400x500x1400
XLB-600x600x2 1.00 125 2 250 2.2 1880x820x1680
XLB-750x850x4 1.60 125 4 500 3 1730x930x2460
XLB-900x900x2 2.5 200 2 400 4 2345x960x1385
XLB-1200x1200x1 3.15 300 1 300 4 2800x1300x2300
XLB-1300x2000x1 5.60 400 1 400 8 2000x1860x2500
XLB-1500x1500x1 8.00 800 1 800 16.5 2200x2200x4300
XLB-1500x2500x1 15.00 400 1 400 11 3000x2500x3300
XLB-2000x2000x1 20.00 400 1 400 11 3600x3000x3300

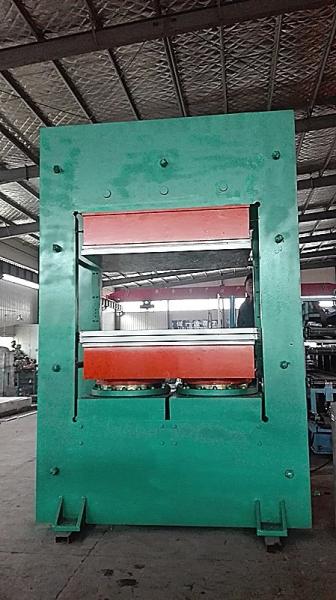

Animal Rubber Mat Vulcanizing Press

Animal Rubber Mat Vulcanizing Press
