Hydraulic Frame Type Vulcanizing Press Machine / Hot Press Vulcanizer

Brand Name : SFC

Model Number : XLB-D

Certification : CE,ISO

Place of Origin : China

MOQ : 1 set

Price : USD10000-100000

Payment Terms : L/C, T/T

Supply Ability : 100Sets/month

Delivery Time : 45days

Packaging Details : Standard export package

Contact Now

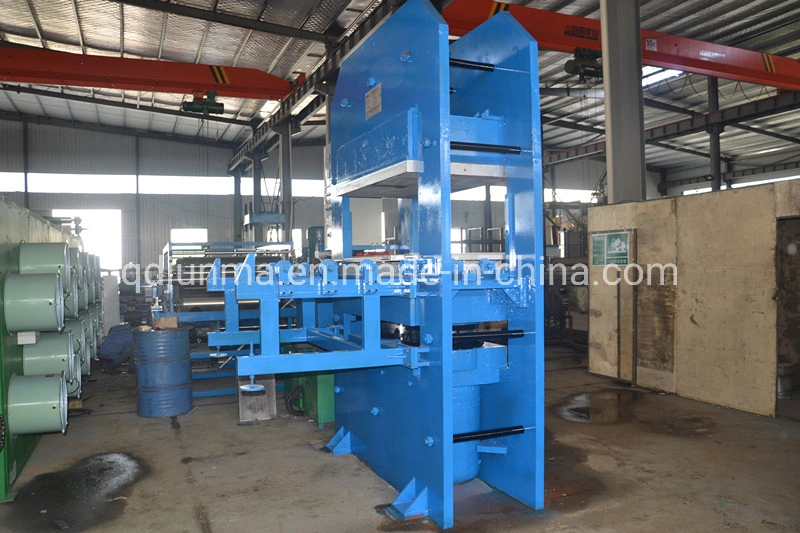

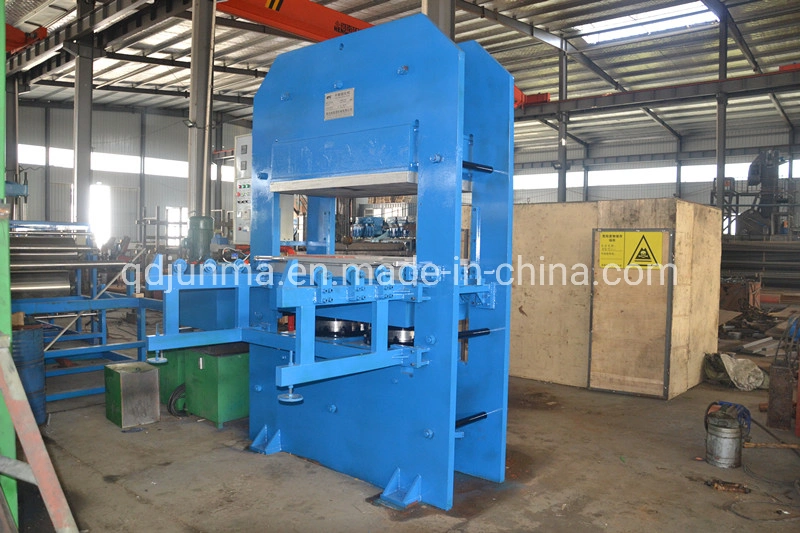

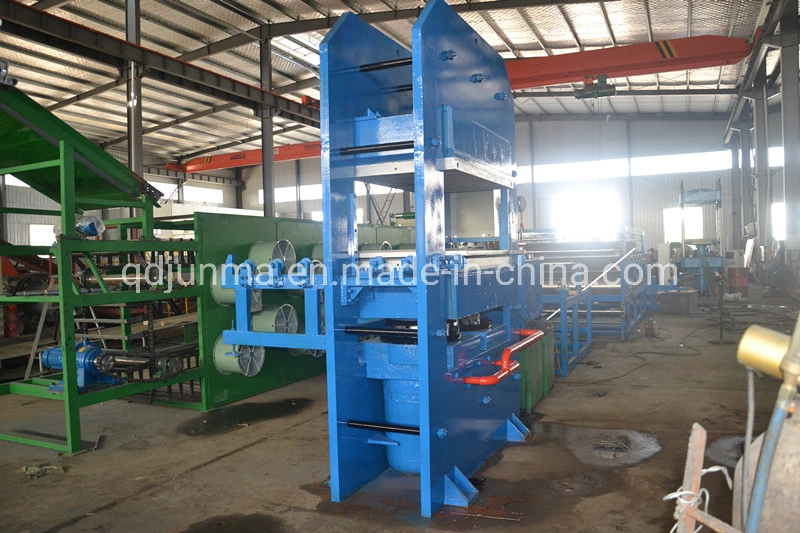

Hydraulic Frame Type Vulcanizing Press Machine / Hot Press Vulcanizer

Feature:

1. All the plates, frame plate, upper and lower beams adopt Q235 steel plates, firstly welded together, then after annealing treatment and eliminating welding stress guaranteeing the whole press won't have any deformation during working.

2. Pistons are made of dense-texture chilled casted iron and then after careful grinding.

3. In order to ensure the plates balanced rising, this press will be fixed with synchronization gear mechanism in the host.

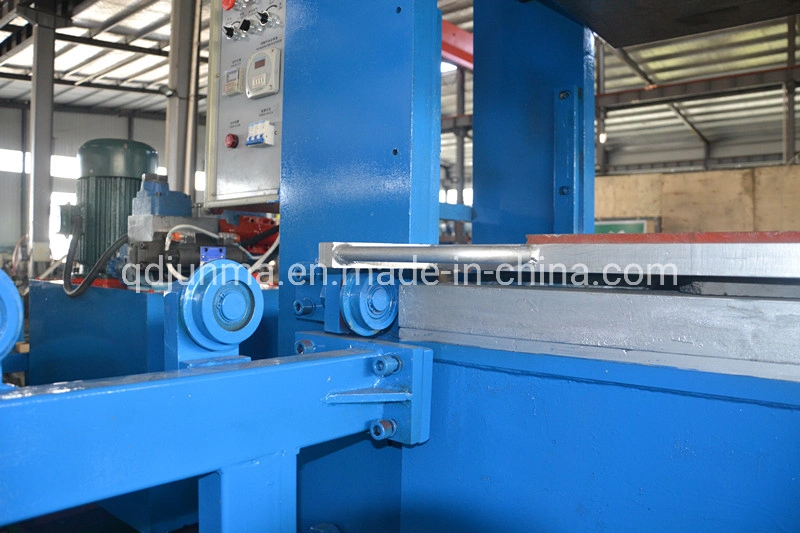

4. This press is configured with automatic hydraulic push-pull mold device driven by hydraulic cylinder. In this case, the press will be of very high working efficiency. And the hydraulic cylinder's material is casted steel.

5. Control Panel: PLC automatic control, touch screen having automatic control and manual control two control methods; Automatic mode can realize automatically mold close, exhaust, vulcanizing timing, fill pressure, vulcanized alarms and automatic mold open and other functions.

6. Plates heating mode is electric,steam or oil heating mode.

7. Hydraulic components and electrical appliances adopt imported or domestic brands to ensure stable performance.

Parameter:

We can design and manufacture all kinds of non-standard rubber machinery according to the requirement of the customers.

Model	Total Pressure	Daylight (mm)	Working Layer	Piston Stroke(mm)	Main Motor Power(KW)	Overall Diameter (LxWxH)(mm)
XLB-350x350x2	0.25	125	2	250	2.2	1200x580x1200
XLB-400x400x2	0.50	125	2	250	2.2	1400x500x1400
XLB-600x600x2	1.00	125	2	250	2.2	1880x820x1680
XLB-750x850x4	1.60	125	4	500	3	1730x930x2460
XLB-900x900x2	2.5	200	2	400	4	2345x960x1385
XLB-1200x1200x1	3.15	300	1	300	4	2800x1300x2300
XLB-1300x2000x1	5.60	400	1	400	8	2000x1860x2500
XLB-1500x1500x1	8.00	800	1	800	16.5	2200x2200x4300
XLB-1500x2500x1	15.00	400	1	400	11	3000x2500x3300
XLB-2000x2000x1	20.00	400	1	400	11	3600x3000x3300
