Accurate Temperature And pressure Control Frame-type Rubber Vulcanizing Press Machine Customization

Brand Name : SFC

Model Number : XLB-1300x2000 x1

Certification : CE、ISO、SGS

Place of Origin : China

MOQ : 1

Price : US$20000-80000

Payment Terms : L/C, T/T

Supply Ability : 500sets/year

Delivery Time : 1 - 3(sets)40(days);>3(sets) To be negotiated

Packaging Details : Safety wood or plywood crates packaging.

Control System : PLC

Cylinder Stroke : Customized

Heating Method : Electric/Steam/Oil

Material : Carbon Steel/Stainless Steel

Operation Mode : Manual/Semi-automatic/Automatic

Power : 7.5-75KW

Pressure Range : 0-100MPa

Product Name : Rubber Vulcanizing Press Machine

Size : Customized

Temperature Range : 0-400℃

Voltage : 220V/380V/440V

Warranty : 1 Year

Weight : Customized

Contact Now

Excellent Heat Conductivity Heating Plate Frame-type plate Rubber Vulcanizing Press Machine Customization

Frank Zhang
business manager
sales-8@sfcjx.com

Accurate Temperature Control: The machine incorporates temperature control systems that ensure precise regulation of the heating elements. This allows for accurate temperature management during the vulcanization process. Customization options include temperature sensors, digital controllers, and programmable temperature profiles to meet specific temperature requirements for different rubber compounds.

Accurate Temperature And pressure Control Frame-type Rubber Vulcanizing Press Machine Customization

Heating Plate Configuration: The customization can involve configuring the heating plates based on your specific needs. This includes determining the number and size of the heating plates, as well as their arrangement. The heating plates are typically made of high-grade materials with excellent heat conductivity to ensure efficient heat transfer to the rubber material.
Customizable Accessories: We may offer various customizable accessories to enhance the functionality and versatility of the machine. These can include mold holders, mold temperature control units, loading and unloading systems, and other auxiliary equipment tailored to specific production needs.

The technical parameters for some models frame vulcanizing machines:

Product Model	XLB-1300x2000 x1	XLB-1500x1500x1	XLB-1500x2500x1	XLB-2000x2000x1
Total Press (MN)	5.60	8.00	15.00	20.00
Plate Size(mm)	1300x2000	1500x1500	1500x2500	2000x2000
Plate Daylight (mm)	400	800	400	400
Working Layer	1	1	1	1
Piston Stroke(mm)	400	800	400	400
Unit Press(Mpa)	2.2	3.6	4.0	5.0
Main Motor Power(kw)	8	16.5	11	11
Overall Size(mm)	2000x1860x2500	2200x2200x4300	3000x2500x3300	3600x3000x3300

Accurate Temperature And pressure Control Frame-type Rubber Vulcanizing Press Machine Customization

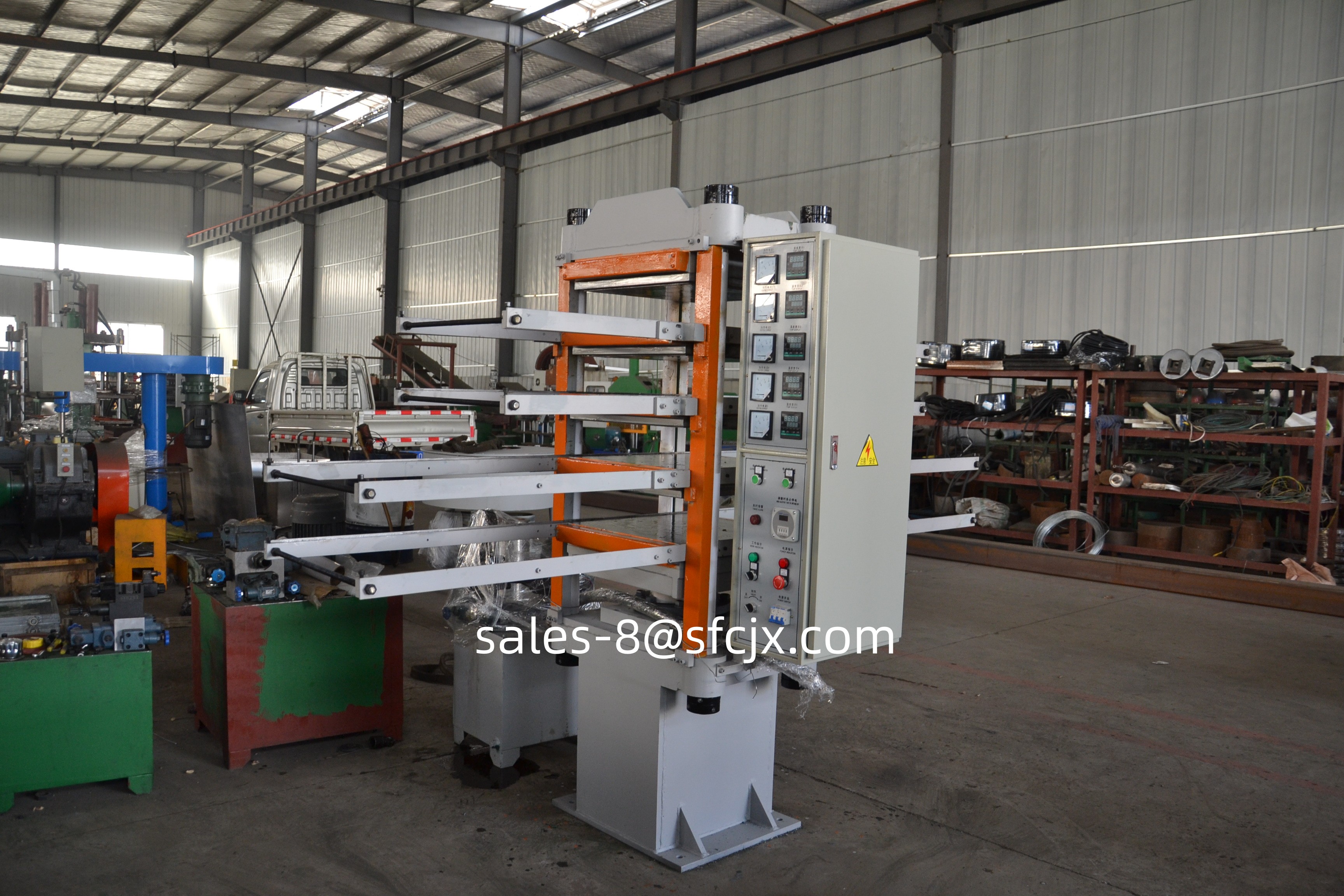

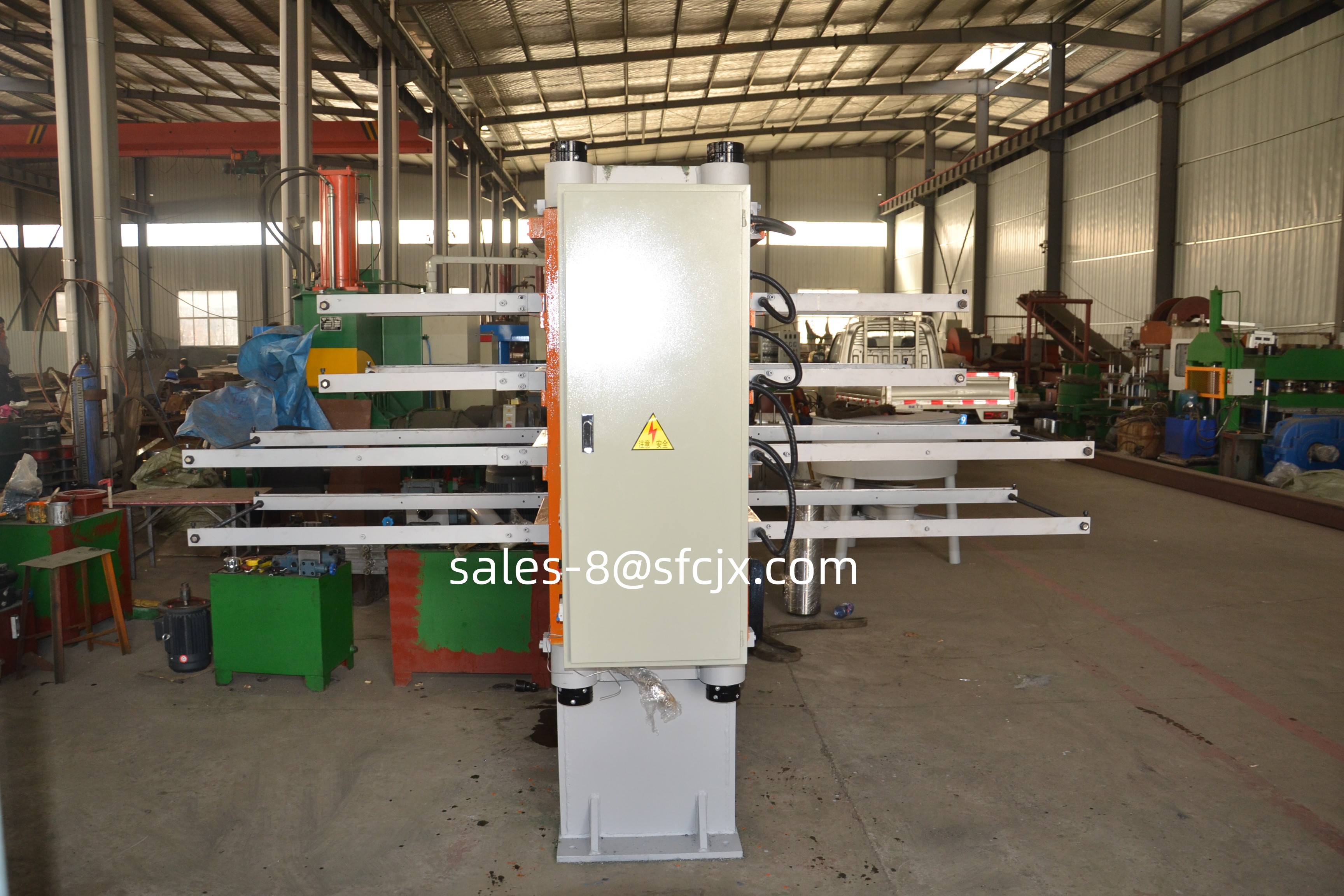

Accurate Temperature And pressure Control Frame-type Rubber Vulcanizing Press Machine Customization Images
